Shower Door Hardware

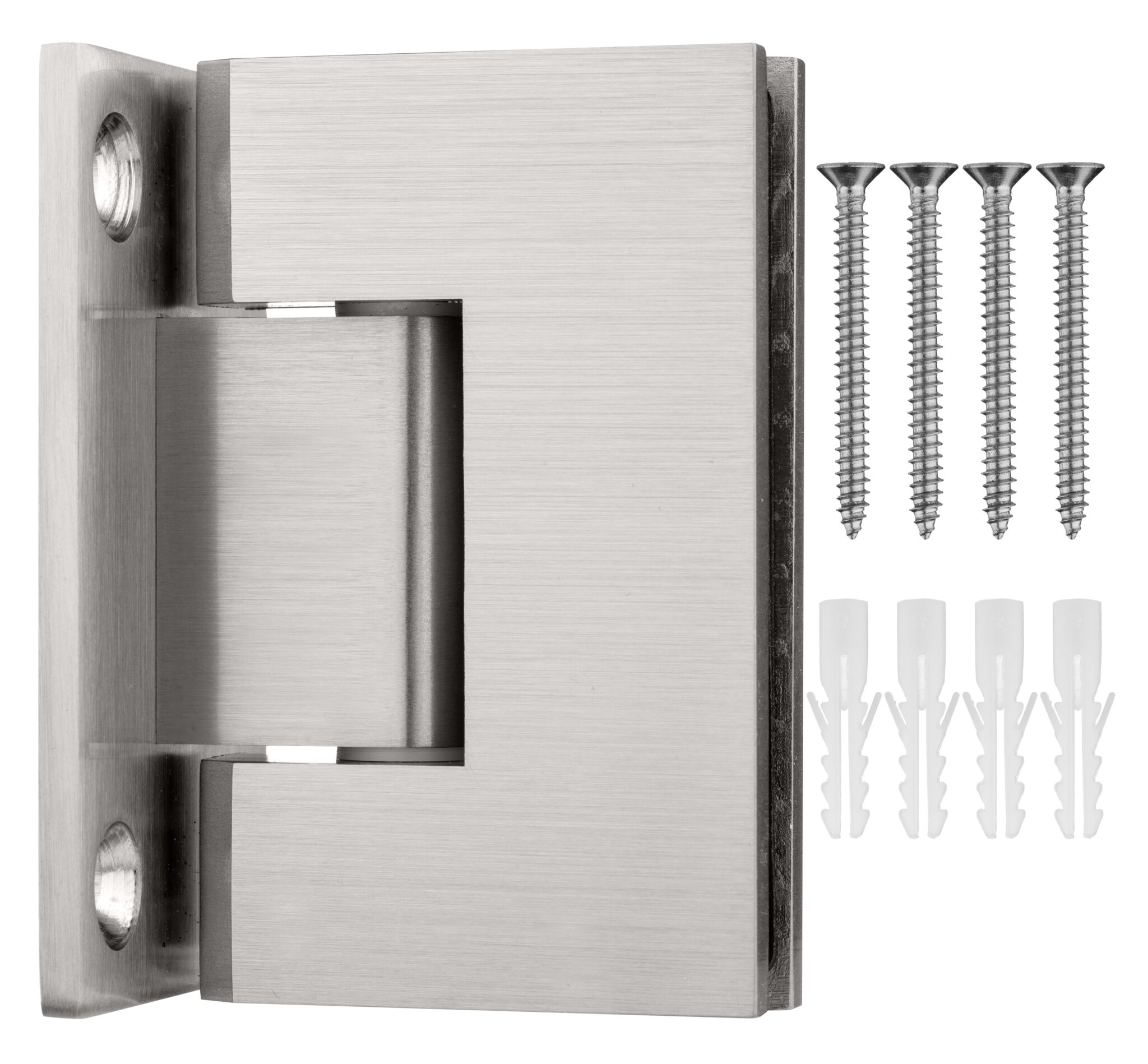

SJQL037BSN0 Junior Square Classic Full Backplate Shower Hinge in Brushed Nickel Finish

$46.40

SKU: SJQL037BSN0 Categories: ,

About this product

Solid Brass Drop Forged Construction

Glass Thickness: 1/4” (6 mm) to 5/16” (8 mm) Tempered Glass Stainless Steel Pin preset at 0 degrees

90 Degree Opening angles

Self centering within 15 degrees from closing position

Industry standard fits typical glass cutout templates

Supplied with Phillips screw heads

Accessories – gaskets, Stainless steel mounting screws, template cut out dimensions.

Using 2 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 62 lbs. with a maximum door width of 28″

Using 3 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 92 lbs. with a maximum door width of 32″

$46.40

Share

Installation Instructions

SJQL037BSN0

61 KB
download

Drawings


Warranty

Warranty information not available.

Additional information

Weight 0.925 lbs
Dimensions 3.75 × 2.125 × 3 in
