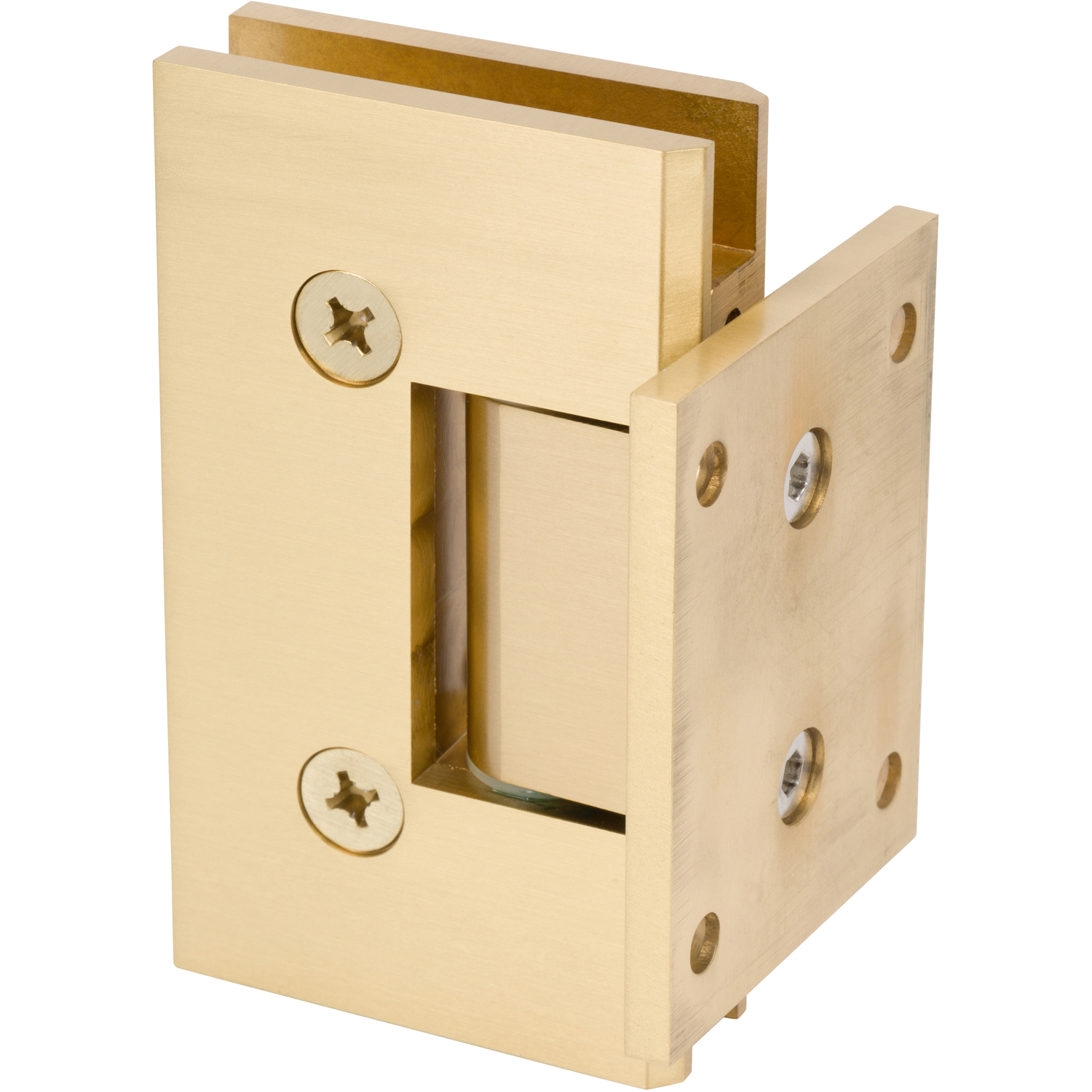

Rockwell Heavy Duty Square Corner Shower Hinge, Short Back Plate In Brushed Brass Finish HSHDS037SUS4-5C

Heavy Duty Square Corner Shower Hinge, Short Back Plate in Brushed Brass Finish

Solid Brass Drop Forged Construction

Glass Thickness 3/8″ (10mm) to 1/2″ (12mm) Tempered Glass

Hinge Preset at 5 degree positive to shower interior for firm seal

Stainless Steel Hardened Coil Springs and Pin

90 Degree Opening Angles

Self Centering with 15 Degree from Closing Position

Industry Standard Fits Typical Glass Cutout Templates Both Mouse Ears and Square Corners

Supplied with both Phillips and Allen Key Screw Heads

Accessories – Gaskets, Stainless Steel Mounting Screws, Allen Wrench, Template cutout dimensions.

Using 2 hinges, with 3/8″ glass the hinge will hold up to 100 lbs. with a maximum door width of 34″

Using 2 hinges, with 1/2″ glass the hinge will hold up to 100 lbs. with a maximum door width of 32″

Using 3 hinges, with 3/8″ glass the hinge will hold up to 130 lbs. with a maximum door width of 34″

Using 3 hinges, with 1/2″ glass the hinge will hold up to 130 lbs. with a maximum door width of 32″
