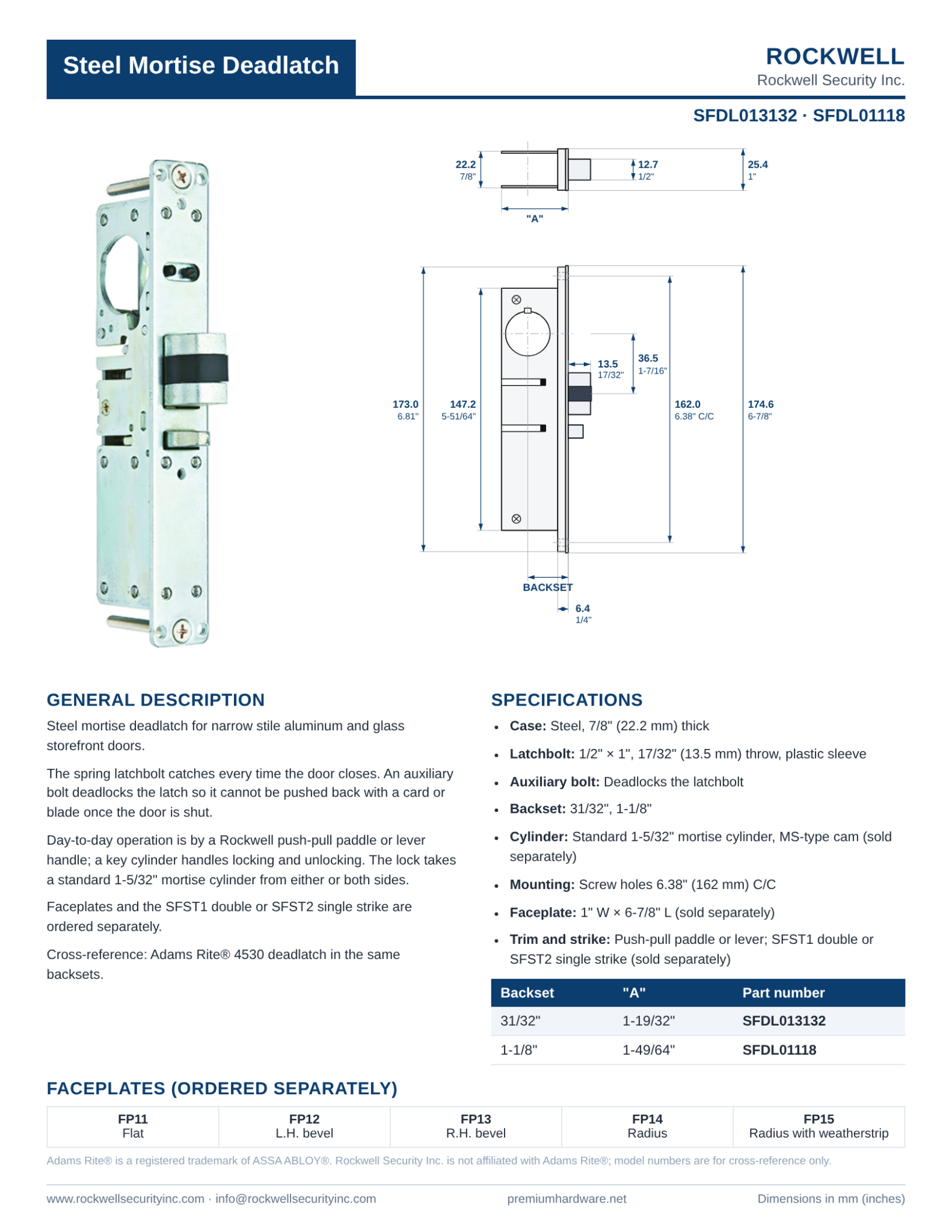

SFDL013132 Rockwell Steel Deadlatch Mortise Lock – 31/32″ Backset

The Rockwell SFDL013132 is a steel mortise deadlatch for narrow stile aluminum and glass storefront doors. The latch catches automatically every time the door closes, and its deadlocking feature keeps it from being pushed back with a card or blade once the door is shut. Day-to-day operation is by a push-pull paddle or lever; a key cylinder handles locking and unlocking.

It is a direct replacement for the Adams Rite® 4530 deadlatch with a 31/32″ backset. It takes a standard 1-5/32″ mortise cylinder with an MS-type cam, and the Rockwell paddles, strike and faceplates below complete the opening without a second supplier.

• Type: Mortise deadlatch
• Case: Steel, 7/8″ (22.2 mm) thick
• Latchbolt: 1/2″ × 1″, 17/32″ (13.5 mm) throw, with plastic sleeve
• Auxiliary bolt: Deadlocks the latchbolt when the door is closed
• Backset: 31/32″ (24.6 mm)
• Cylinder: 1-5/32″ (29 mm) threaded mortise cylinder with MS-type cam, sold separately
• Faceplate: Ordered separately: flat (FP11), L.H. bevel (FP12), R.H. bevel (FP13), radius (FP14) or radius with weatherstrip (FP15)
• Strike: SFST1 double strike or SFST2 single strike, sold separately
• Trim: Rockwell push-pull paddle (Adams Rite® 4590 style) or SFLH lever handle, sold separately
• Cross-reference: Adams Rite® 4530 deadlatch, 31/32″ backset

Complete the lock: a deadlatch faceplate, a push-pull paddle in aluminum (left hand or right hand) or bronze (left hand or right hand), the SFST1 double or SFST2 single strike, and an SC1 mortise cylinder in aluminum or bronze.

Which backset do I need? Measure from the edge of the door to the center of the cylinder hole. This deadlatch is 31/32″. It is also available in 1-1/8″.

Adams Rite® is a registered trademark of ASSA ABLOY®. Rockwell Security is not affiliated with or endorsed by Adams Rite®; model numbers are for cross-reference only.
