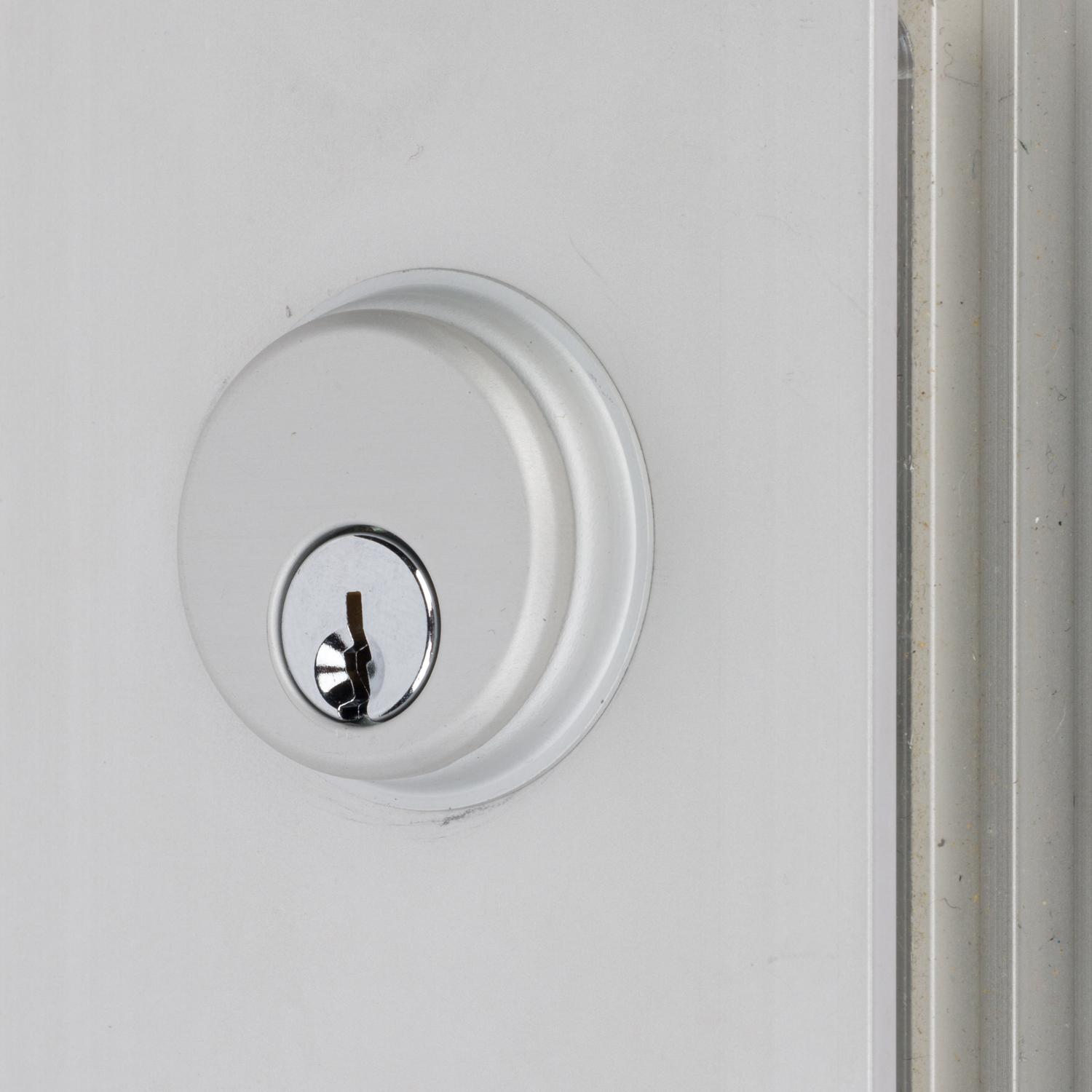

SFZCX1ALKA Rockwell SC1 Mortise Keyed Cylinder, Aluminum – Single, Keyed Alike

SC1 mortise keyed cylinder in aluminum finish, keyed alike. Supplied with a 1/4″ trim ring and 2 keys.

Sold as a single cylinder, keyed alike: all 100 cylinders in a carton take the same key, and each carton has its own key. Use it where many doors should open with one key. 2 keys included. Rekeying is quick: the SC1 keyway takes standard Schlage pins, so locksmiths can re-pin with a standard Schlage pinning kit and cut keys from common SC1 blanks. The 1-5/32″ threaded housing and MS-type cam suit mortise locks that take a standard 1-5/32″ mortise cylinder.

• Keyway: Schlage SC1, 5-pin
• Pin depths: 0–9, 0.015″ increments (bottom pins #0 = 0.165″ to #9 = 0.300″)
• Pin spacing: 0.156″ center to center; MACS 7
• Rekeyable: Yes, with standard Schlage pins; accepts SC1 key blanks
• Diameter: 1-5/32″ (29.4 mm)
• Cylinder length: 1″ (25.4 mm)
• Cam: MS-type, DIM “A” 0.800″ ± 0.005″ (20.3 mm)
• Trim ring: 1/4″ (6.35 mm) thick, included
• Housing: Zinc diecast; aluminum anodized shell cover
• Keys: 2 solid brass, nickel-plated
• Keying: Single, keyed alike (all 100 pcs per carton on one key)
• Finish: Aluminum

Fits: Rockwell storefront mortise locks, including the steel and stainless steel hook bolt, the mortise deadbolt and the mortise deadlatch, plus other narrow stile mortise locks that take a 1-5/32″ cylinder with an MS-type cam (Adams Rite® MS1850, MS1950 and 4530 style). Lock faceplates are on the faceplate page.
